Laser Scanner CS/CSD

OPTIMESS CSD

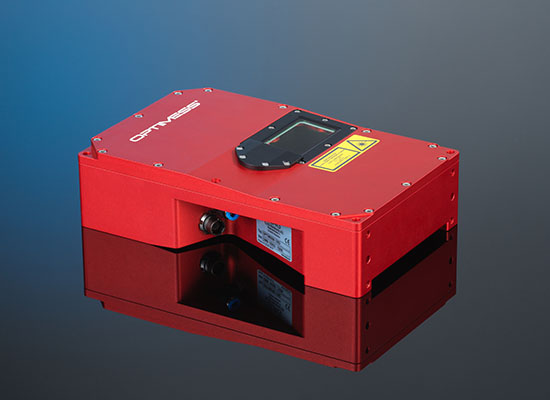

The OPTIMESS CS and CSD are phase-based time-of-flight laser scanners developed specifically for contact wire measurement, yet also suited to general measurement tasks. The OPTIMESS CS and CSD laser scanners stand out for their compact size and low weight. At the same time, they are built for harsh environments, delivering the highest reliability and a long service life. Unlike the CS, the OPTIMESS CSD has an additional downward-facing measuring field. This gives you a choice of one or two 60° scan sectors.
  • Measurement rate up to 1 MHz
  • Scan rate up to 100 Hz
  • Measurement range: 60° (CS) or 2x60° (CSD)
  • Compact design and low weight
  • Designed for harsh environments and high reliability
  • Controlled window heating to prevent fogging
  • Integrated Airknife to keep the protective windows clean

Specifications

Performance
Field of view
60° / 2x60°
Precision*
0.4 mm
Max. measurement rate
1 MHz
Accuracy**
±2 mm
Scan rate
10 … 100 Hz
Angular resolution
0.01°
Measurement range
0.5 … 5 m
Angular accuracy
±0.025°
Environmental conditions
Humidity
5 % - 95 %, non-condensing
Protection rating
IP 66, IP 67 even when unplugged
Ambient light
more than 100,000 lux (sunlight)
Temperature range
-20 °C to 50 °C (optionally extendable to -40 °C)
Approvals
CE
Laser
Class
2 (EN 60825-1)
Wavelength
660 nm

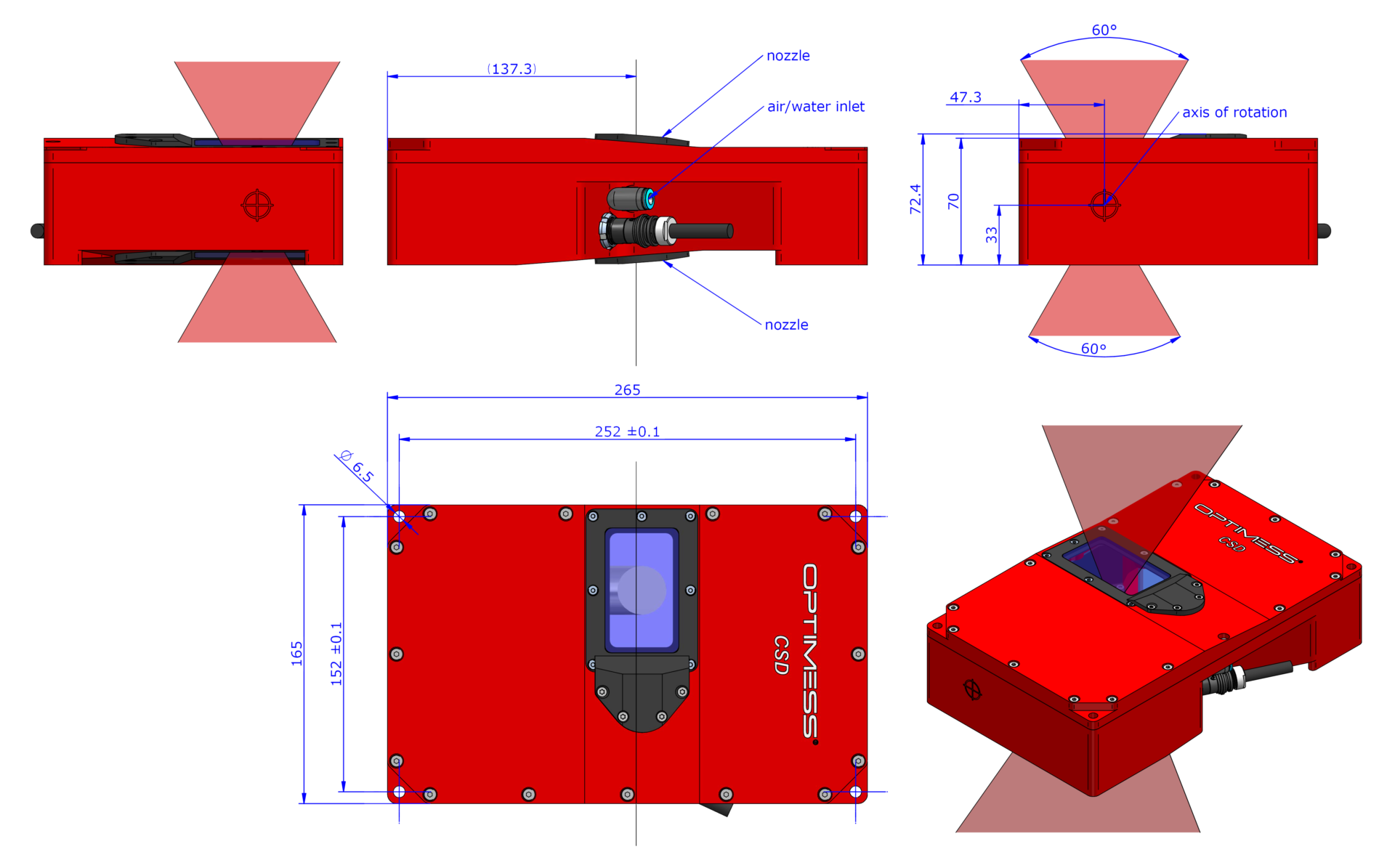

Dimensions
Size
265x165x72mm (Length, Width, Height)
Weight
5 kg
Connections
Supply voltage
20 - 30 V DC
Power
≤ 40 W
Data transmission
Passive PoE, Ethernet 100/BASE-T
Connectors
Fischer® Connectors Ultimate Series
Compressed air
6 mm inlet (max. 6 bar)

CONNECTIVITY

The Opti Cat Position software processes the measurement data, compensates for vehicle movements and presents the results in clear visualisations. Its modular design lets you integrate complementary products as required, and its open interfaces connect it to further systems.

Beyond straightforward integration, the open interface also provides transparent access to raw data and measurement profiles – ideal for customer-specific analyses, process integration and your own software solutions.

OPTIONS & COMPLEMENTARY PRODUCTS

A wide range of complementary products is available for the OPTIMESS CS/CSD laser scanners. They let you tailor the scanner optimally to customer-specific applications, ambient conditions and integration requirements. Examples include:

OPTIMESS DPU for merging and transmitting measurement data

Opti Cat Position software for evaluating the overhead wire position

OPTIMESS 2D XLS sensors for motion compensation

Connection boxes, cables and customer-specific extensions
