Laser scanner for adjacent-rail distance monitoring

OPTIMESS RD

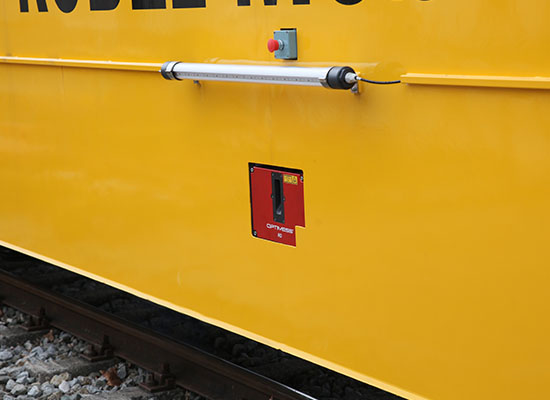

Distance monitoring from a safe distance – the OPTIMESS RD always has the adjacent rail in sight. It can be mounted directly on the bogie. The large measurement range (up to 6 metres) enables distance monitoring even from a greater distance and outside the danger zone. Thanks to the large temperature range (-20 to 50 °C) and integrated condensation protection, safe measurements can be carried out even in wintry conditions.
  • Can be mounted directly on the bogie
  • Large measurement range (up to 6 metres) for distance monitoring
  • Temperature range -20 to 50 °C
  • Integrated condensation protection
Laying new tracksRenovating existing railway infrastructureAdjacent-rail distance monitoring

Specifications

Measurement
Typical measurement object
Adjacent rail
Field of view
79°
Field of view Alignment
-60 ... +19° (diagonally downwards)
Max. Measuring rate
1 MHz
Scan rate
10 ... 100 Hz
Measurement range
0.5 ... 10m
Measurement uncertainty
0.4 mm **
Linearity
±4 mm ***
Angular resolution
0.005°
Angular accuracy
±0.03°
Environmental conditions
Temperature range
-20 to 50 °C
Condensation protection
Integrated
Housing

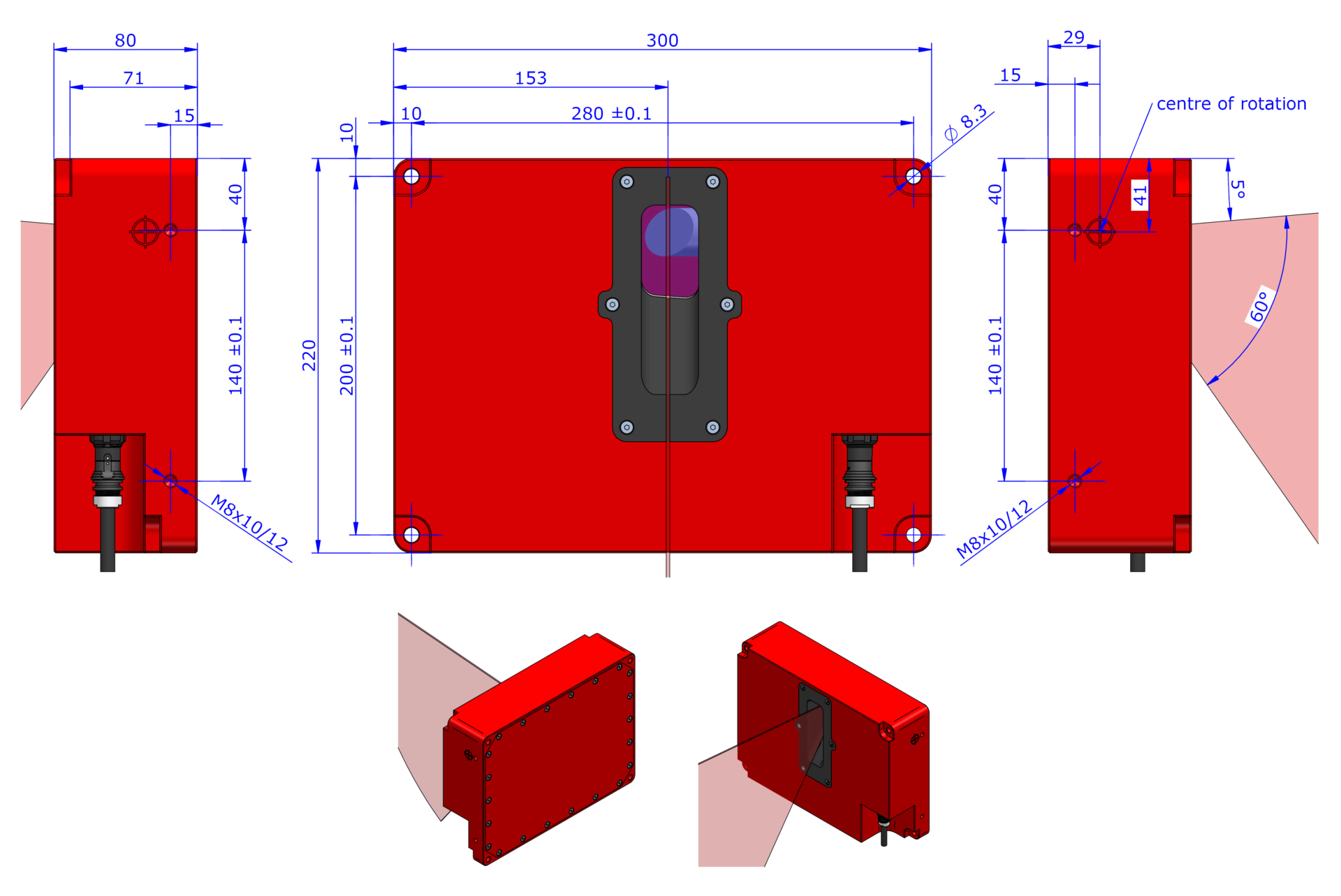

Dimensions
300 x 220 x 80 mm
Weight
7.2 kg
