Laser triangulation sensor

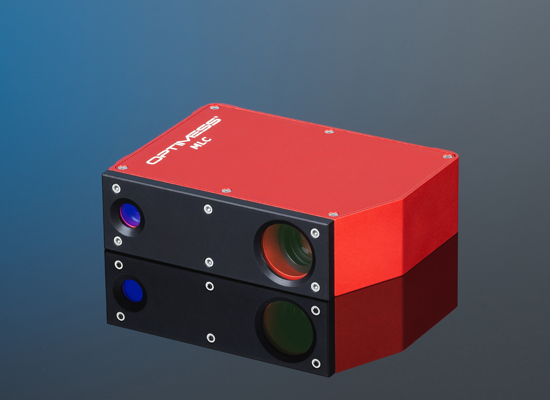

OPTIMESS MLC

The laser sensor OPTIMESS MLC works according to the triangulation principle. Due to its robustness, the sensor is particularly suitable for use on vehicles, e.g. for road transverse and longitudinal profile measurement as well as driving dynamics measurement where larger measuring ranges are required. The sensor is characterised by a high degree of independence of the measurement accuracy on different surfaces and from ambient light. The controller integrated in the sensor processes the optical distance information and outputs it as an analogue value or via the CAN bus.
  • High measuring rate up to 50 kHz
  • High accuracy
  • High robustness, IP 67
  • Insensitive to sunlight
  • Analogue output or CAN bus
Road transverse profile measurementRoad longitudinal profile measurementDriving dynamics measurement

Specifications

Environmental conditions
Humidity
5% - 95%, non-condensing
Protection type
IP67 (also when unplugged)
Ambient light
over 100,000 lux (sunlight)
Vibration
10-100Hz, 2mm
Shock
15G / 6ms, EN 60068
Temperature range
-20°C to 60°C (optionally extendable up to -40°C)
Environment, safety
EN 50155
Certifications
CE
Laser
Protection class
1, 2, 3R, 3B, EN 60825-1
Wavelength
405nm – 680nm, depending on application
Connections
Supply voltage
10 - 32 V DC
Power
2-4 W
Interface
0-5V / 0-10V / CAN Bus
