Laser Scanner WSH

OPTIMESS WSH

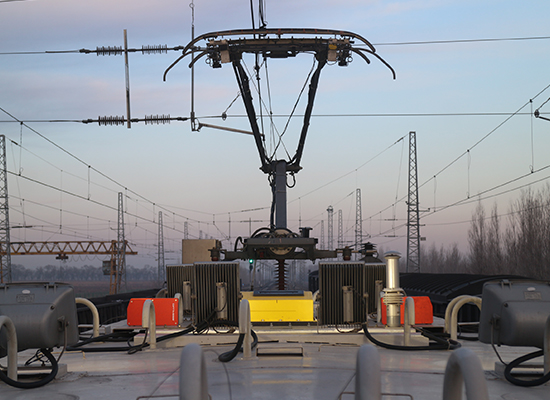

The OPTIMESS WSH extends the OPTIMESS SCAN product line with a powerful laser scanner for highly dynamic measurement tasks. With up to 400 profiles per second and a measurement rate of up to one million measurement points per second, it delivers dense, reliable data even at high speeds. Even at 360 km/h, it still captures four position values per metre. A rugged design, integrated window heating, a high protection rating and optional protective housings allow reliable operation in harsh environments.
  • Measurement rate up to 1 MHz
  • Scan rate up to 400 Hz
  • Measurement range up to 5 m
  • Scan angle 60°
  • High ambient light immunity, even in direct sunlight
  • Protection rating IP 67
  • Operating temperature -20 to +50 °C
  • Integrated, controlled window heating to prevent fogging

Specifications

Performance
Field of view
60°
Precision*
0.4 mm
Max. measurement rate
1 MHz
Accuracy**
±2 mm
Scan rate
60…400 Hz
Angular resolution
0.01°
Measurement range
0.5…5 m
Angular accuracy
±0.025°
Environmental conditions
Humidity
5 % - 95 %, non-condensing
Ambient light
more than 100,000 lux (sunlight)
Protection rating
IP 66, IP 67 even when unplugged
Temperature range
-20 °C to 50 °C (optionally extendable to -40 °C)
Standards
EMC
EN 50121-3-2 (railway-compliant to EN 50155)
Approvals
CE
Laser
Class
2 (EN 60825-1)
Wavelength
660 nm
Connections
Supply voltage
20 - 30 V DC
Power
≤ 100 W
Data transmission
Ethernet 100/1000BASE-T
Connectors
Fischer® Connectors Core Series
Dimensions
Size
330x242x122mm (Length, Width, Height)
Weight
12.5kg

CONNECTIVITY

The Opti Cat Position software processes the measurement data, compensates for vehicle movements and presents the results in clear visualisations. Its modular design lets you integrate complementary products as required, and its open interfaces connect it to further systems.

Beyond straightforward integration, the open interface also provides transparent access to raw data and measurement profiles – ideal for customer-specific analyses, process integration and your own software solutions.

OPTIONS

Protective housings with shutters that shield the sensor when not in use

Heating systems for use at very low temperatures

Airknife functions to keep the protective windows clean

Connection boxes with DIN rail mounting for easy integration

Software options and customer-specific functions

PROTECTIVE HOUSING

Cover Basic

Mechanical protection, internal ventilation, easy roof mounting and robust connection technology.

Cover Airknife/Shutter

Additionally with Airknife for window cleaning and pneumatic shutter for maximum protection in harsh conditions.
